Twintip footstrap plug repairs

> 10 years ago
Reply
Register to post, see what you've read, and subscribe to topics.
beefarmer
beefarmer
WA
328 posts
WA, 328 posts
1 Feb 2012 11:23pm
so i broke the nut that's set into the deck of my favourite twinnie, which holds the footstrap down.

Does anyone know the best way to go about fixing this? the best thing i can think of is to drill a hole right through the board and put a bolt all the way through the original hole. Obviously this isn't ideal, i'll end up with bolt head sticking out of the bottom of the board.

Anyone know a better solution? - I thought of countersinking the bolt head into the board a bit but reackon it'll be too weak and will pull through the deck. Maybe some epoxy solution if there's a strong enough product for this type of thing?

cheers in advance
austin
austin
671 posts
671 posts
2 Feb 2012 8:40am
i once threaded the nut on the deck, after lots of pissing around the easy option was just drill through and stick a bolt through.
i was very attatched to my board too being a rocky chatwell carbon pro......ho hum
Ozoned
Ozoned
NSW
58 posts
NSW, 58 posts
2 Feb 2012 12:38pm
If you can get a new plug from your local kite shop you might be able to use a dremil to cut around the existing plug and resin the new one in.

Haven't done it myself but would think it would be similar process to replacing a FCS fin plug.
dbabicwa
dbabicwa
WA
809 posts
WA, 809 posts
2 Feb 2012 11:30am
Ozoned said...

If you can get a new plug from your local kite shop you might be able to use a dremel to cut around the existing plug and resin the new one in.

Haven't done it myself but would think it would be similar process to replacing a FCS fin plug.


Ozoned, I fixed it for ya!

Dremel is great! Get a tiny grinding bit and make a thread to use a screwdriver for taking the bolt out.
Is it 6mm bolt?
sbray
sbray
SA
350 posts
SA, 350 posts
2 Feb 2012 4:32pm
this post ( Old Surfboard rebirth into a Kiteboard.) from seabreeze, some time ago, shows several methods of how to insert / repair strap anchor threads.

www.seabreeze.com.au/forums/Kitesurfing/General/Old-Surfboard-rebirth-into-a-Kiteboard/?page=1&SearchTerms=deck

cheers
fossil
beefarmer
beefarmer
WA
328 posts
WA, 328 posts
2 Feb 2012 11:21pm
thanks for the tips guys.

Hmm dremel, high speed rotary tool hey. I'd never heard of them before.

having considered the options I'm favouring the simple drill right through the board technique. the twinnie has served me well, first board i ever had, she'll still go good with a pimple on her bottom.


FishOutOfWater
FishOutOfWater
QLD
20 posts
QLD, 20 posts
3 Feb 2012 4:52am

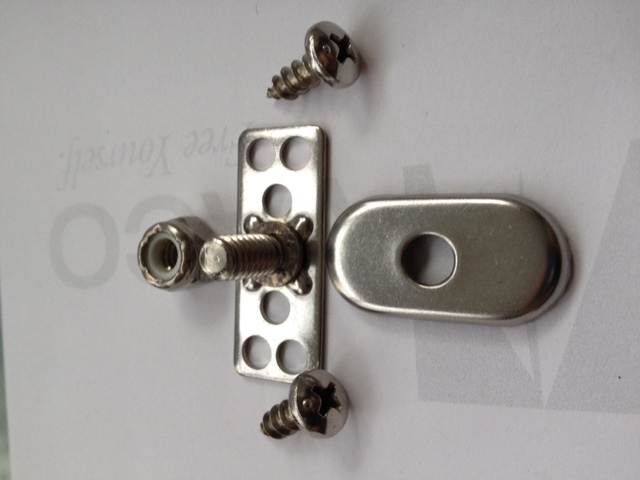

I don't know if you can still find something like this but I used a "Slingshot Posi Lock Fastener System" to repair 2 inserts in my 2006 Naish SOL. It's still going strong (as a backup board) today.



Basically you center it over the existing hole and screw two offset self-tappers into your board to clear the failed insert. You then use the Nylon nut and washer/plate to hold down the strap.

The kit I bought was dated 2004 but it worked so well I'd like to think something similar is still around today. The only challenge might be if board cores have changed so the self-tappers can't get any bite. You also want to be careful that the self-tappers don't go completely through your board.
