12v on shore power

> 10 years ago
Reply
Register to post, see what you've read, and subscribe to topics.
holdfastom
holdfastom
NSW
42 posts
NSW, 42 posts
18 Sep 2015 9:39am
Hi All,

Im a liveaboard and lucky enough to have shore power however alot of my boat is 12v...ive got a smart charger (1600ma) however that does not see to keep up the charge when I want to run various systems (sound, light, toilet etc)...is it a case of replacing the small smart charger to keep using 12v or is there a better way of doing it?

cisco
cisco
QLD
12365 posts
QLD, 12365 posts
18 Sep 2015 5:49pm

You need more amperage. The 1,600 ma is only 1.6 amp and your stereo probably pulls more than that at half crank. There are schools of thought for and against smart chargers.

A conventional charger of good quality with high and low charge rate switch that will deliver something from 7 up to 10 amps should do the job for you. However you will need to keep an eye on things to avoid cooking the batteries.

Another thing you could do to avoid working your batteries all the time is isolate the batteries from the house load and connect a regulated 12 volt power supply into your house load circuit. You plug it into 240 volts one side and get a regulated 12 volt DC power supply out the other side.

I have a 4 amp regulated power supply unit you can have for the cost of postage. Get more opinions on how to solve your problem and on what I said above, then let me know if you want me to send you the power supply.
Charriot
Charriot
QLD
880 posts
QLD, 880 posts
18 Sep 2015 9:28pm
Hard to belive / 1. 6 times 12. 5 equal 20 wats / you supply 20 watts into your house and require a few hundreds .
who advise you to this arrangement
sure you must install 8 - 20 Amps battery charger.....
smart or not, does not matter, every charger limits the current to prevent overcharging ...

suggestion disconnect all house batteries and install power supply, is ok but only under
certain condition, and bit more expensive
note ...do not mix up bat. charger and power supply, the are two very different units
cisco
cisco
QLD
12365 posts
QLD, 12365 posts
18 Sep 2015 10:09pm
So what you say Charriot appears to confirm my advice????
Charriot
Charriot
QLD
880 posts
QLD, 880 posts
19 Sep 2015 5:08am
sure, good advice, both options are equally good
also combination both,....splitting house bank in case of more batteries, is an option too
Trek
Trek
NSW
1215 posts
NSW, 1215 posts
20 Sep 2015 7:12am


Your battery may also be shot. To test it get a $9.99 Digital Multimeter from an electronics shop.

Disconnect everything from it for a few minutes then measure it. If you get a reading better than 12V battery is probably OK. If 11V or so battery is badly flat, possibly damaged. If reads in the 10V range or less its bad, get a new one.

After that, as mentioned above, If the battery is in good shape the power into boat via your shore power must be more than what you use and 1.6A is small for say a 100AH car battery and what you have connected.

I found fridges are bad for flattening boat batteries because they are a 24/7 load. And lots of electronic equipment (stereos TVs etc) dont actually turn off when you switch them off, the lights just go off but the circuitry inside is still on. They dont draw much but over 24 hours they do.

Live aboard Yay! I did it for a year and a half once, it was one of the best times of my life :-)
holdfastom
holdfastom
NSW
42 posts
NSW, 42 posts
20 Sep 2015 11:04pm
Thank you all...Cisco I'd like to go with your offer if thats still an option....the main things that I run off 12v is stereo, loo and water pump (have 240v lights now so use them instead)....and Im comfortable in isolating them...I will PM you with details and let me know what costs etc...
cisco
cisco
QLD
12365 posts
QLD, 12365 posts
21 Sep 2015 10:14am
No problem. It weighs about 1.5 kg. Will find out cost of postage or might be able to send it C.O.D.
Colombo7E
Colombo7E
QLD
29 posts
QLD, 29 posts
21 Sep 2015 11:52am
G'day

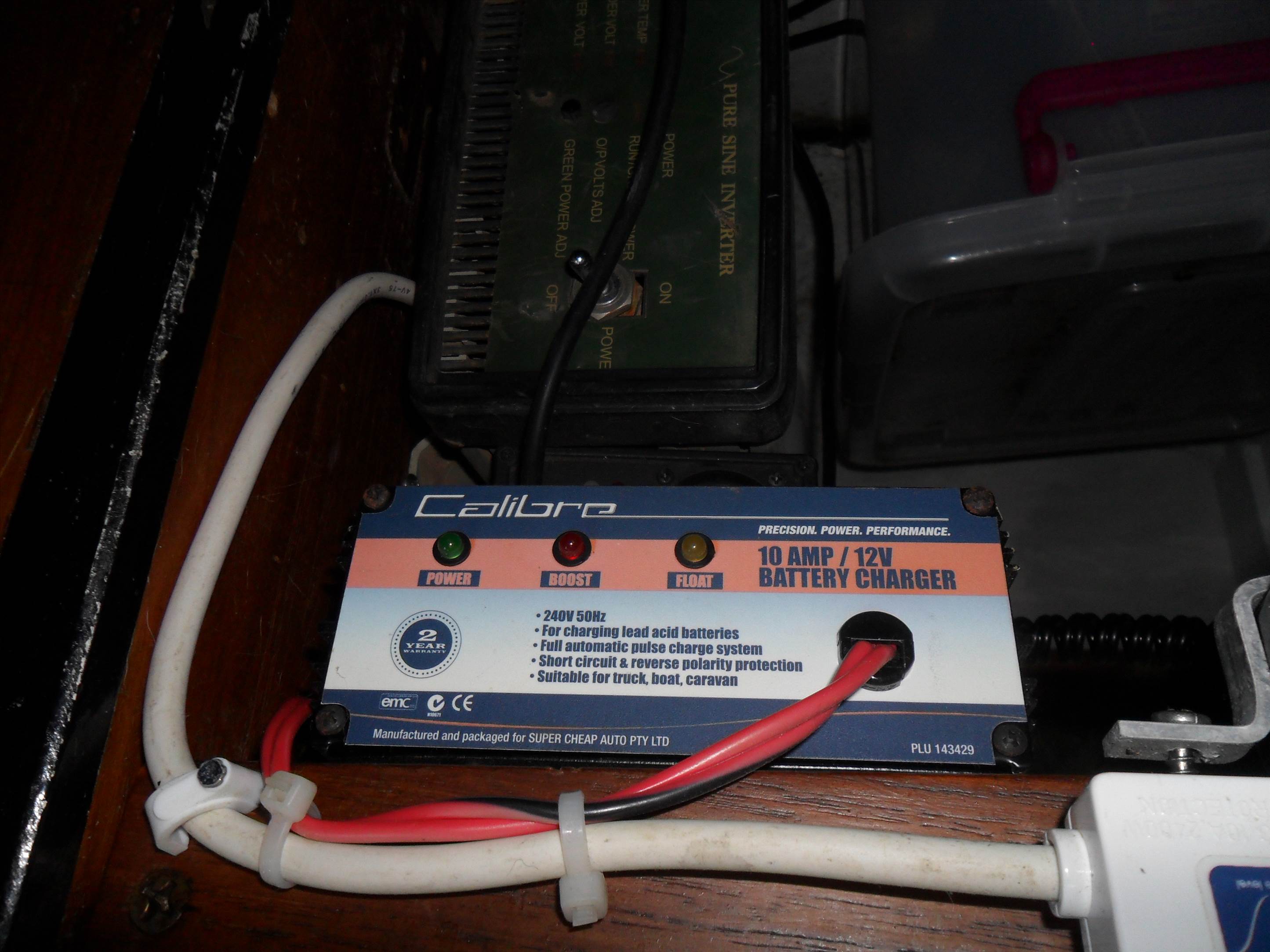

I have Galibro 10 A 12 volt Automatic Battry Charger it's been connected to shore power last 4.5 years.
It keep battery voltage 13.6 volts at float charge.
I got it from Super Sheap Autos.
I live in my boat full time at Hervey Bay marina.
I use 12volts for Lights, TV, Computers and Alarm system and it keeps up it' allways on float.







Jolene
Jolene
WA
1624 posts
WA, 1624 posts
24 Sep 2015 7:05pm

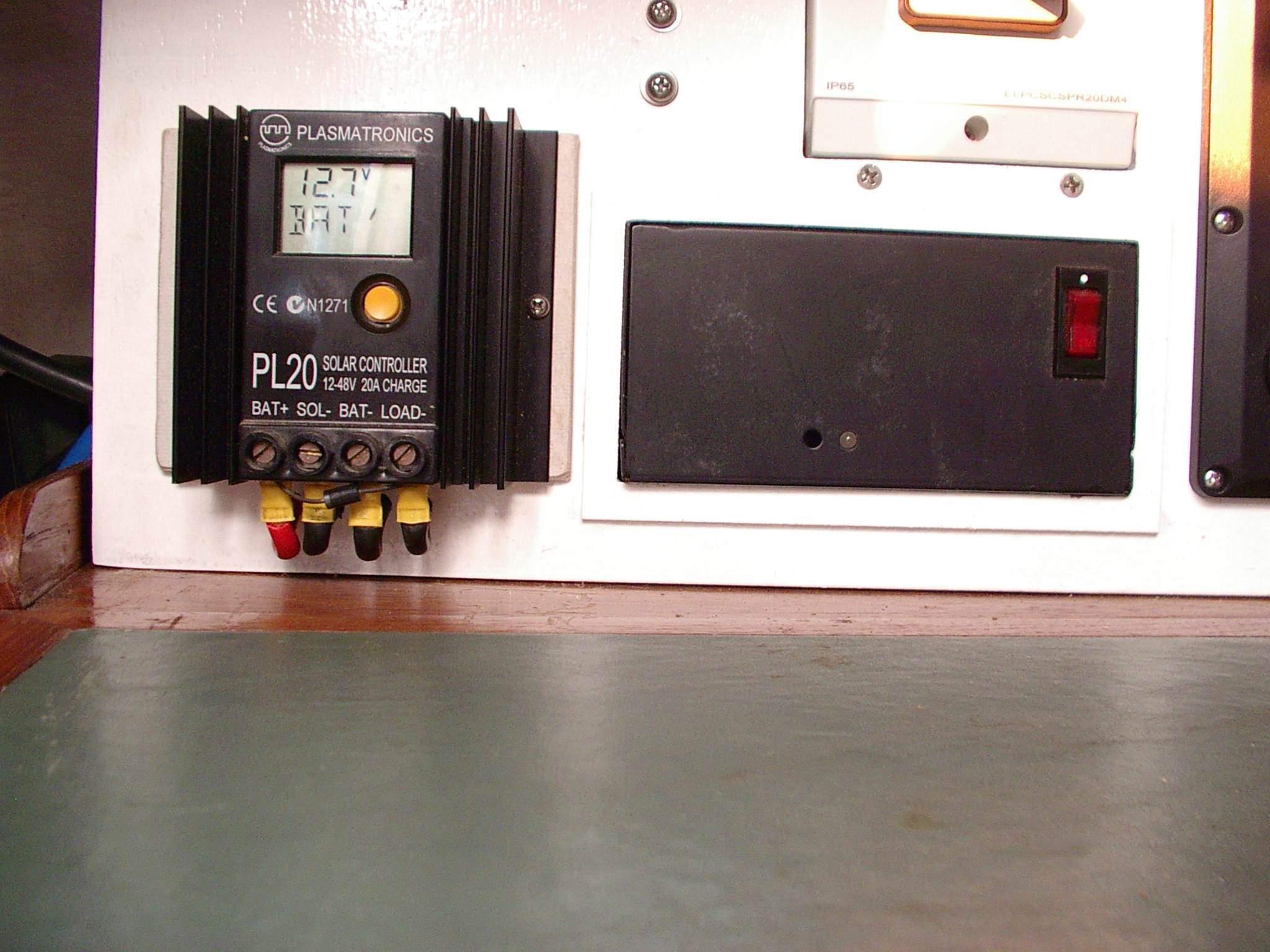

My PL20 controller and the 240vlt power supply along side. The 13.5 vlt d/c , 17 amp regulated output from the 240 vlt power supply is wired through the PL20 solar regulator. Most of the 12vlt wiring goes through the PL20 load terminal so current draw can be measured as well as amp/hr in and out. A simple bypass switch disconnects everything from the load terminal and switches directly to the battery in case of PL20 overload or failure.The PL20 can be configured to accept charge from the auxiliary 240 vlt /12vlt power supply when the solar input drops to a low level.
