Thoughts on Split Pins for Mooring Tackle

9 years ago
Reply
Register to post, see what you've read, and subscribe to topics.
keensailor
keensailor
NSW
702 posts
NSW, 702 posts
2 Sep 2016 8:59am

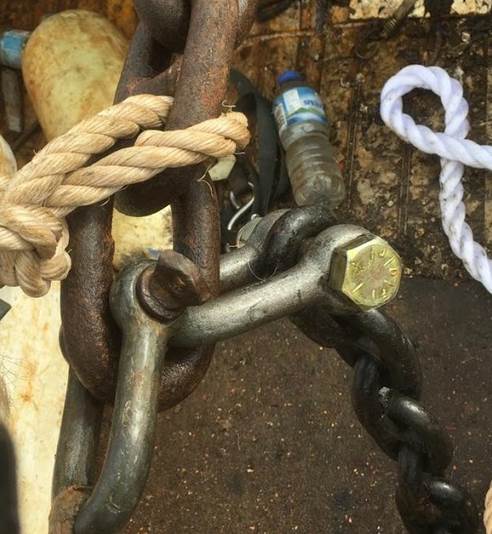

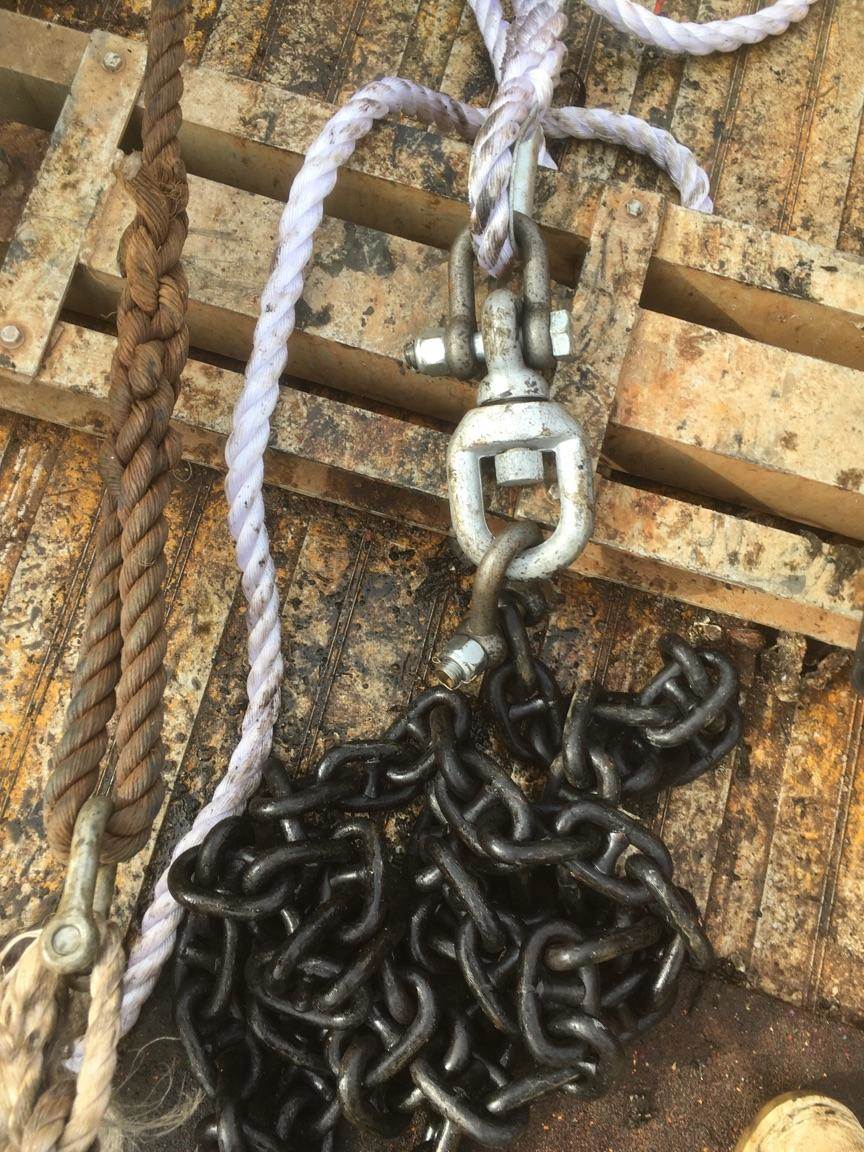

have'nt seen it done this way before





rumblefish
rumblefish
TAS
824 posts
TAS, 824 posts
2 Sep 2016 9:50am
They are what is called a 'safety pin' shackle.

The reason they use them is where shackles normally rust away first is on the thread of the pin, causing the pin to be loose and only held in by the seizing wire. Safety pins are better but a fair bit more expensive.

We find when we check our mooring every 2 years we change the shackles anyway.
cisco
cisco
QLD
12365 posts
QLD, 12365 posts
2 Sep 2016 1:06pm

The problem I see there is that the bolts, nuts and pins appear to be stainless. That is going to cause electrolysis degrading the chain, shackles and swivel.
keensailor
keensailor
NSW
702 posts
NSW, 702 posts
2 Sep 2016 4:05pm
cisco said..

The problem I see there is that the bolts, nuts and pins appear to be stainless. That is going to cause electrolysis degrading the chain, shackles and swivel.


yeah they could be SS, I thought they might be high tensile steel, maybe I should check
