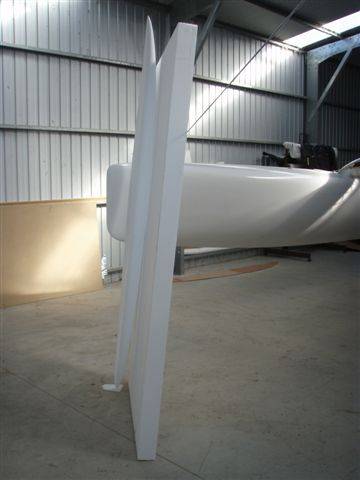

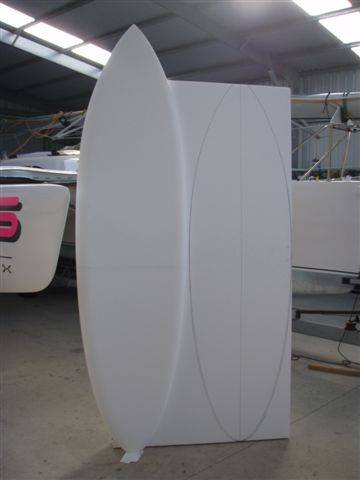

If you haven't done any shaping before a good way of learning the skill is to first cut out your board/outline.
Then with the scraps of EPS try & shape a model SUP, it will require the same steps & probably more care to do it well, light grade EPS is **** stuff to shape, it will take practice.
And it is a little more work, but less expence to shape from flat sheet.
Shapers below sell EPS blanks but they are pricy, particularly if you stuf it up!
Just remember its far easer to take more foam off than to put it back on
For info on the subject of shaping & glassing see www.shapers.com.au for DVD's

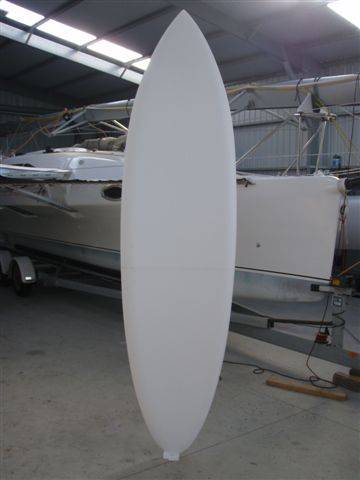

9' x 27" Shaped The 8' x 26" next

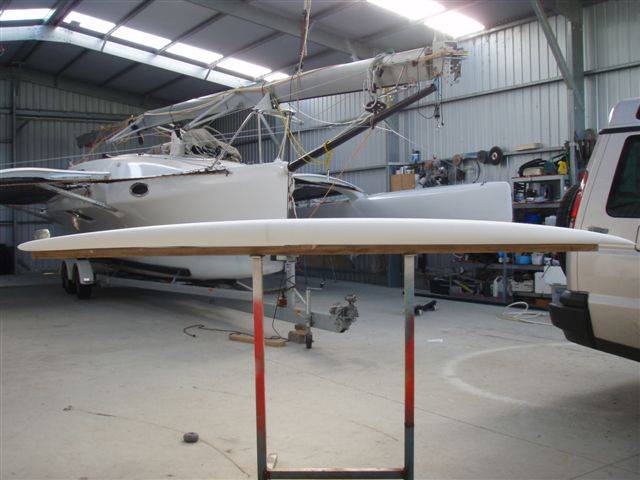

The rocker is close "un bent"

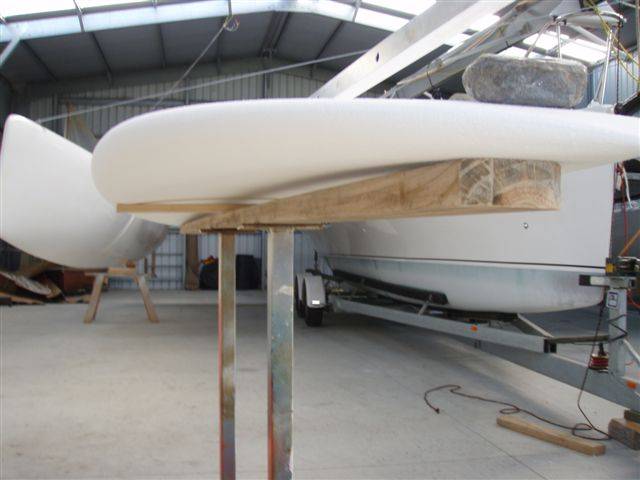

Concave deck full length, reduces weight, c of g & full buoyant rails

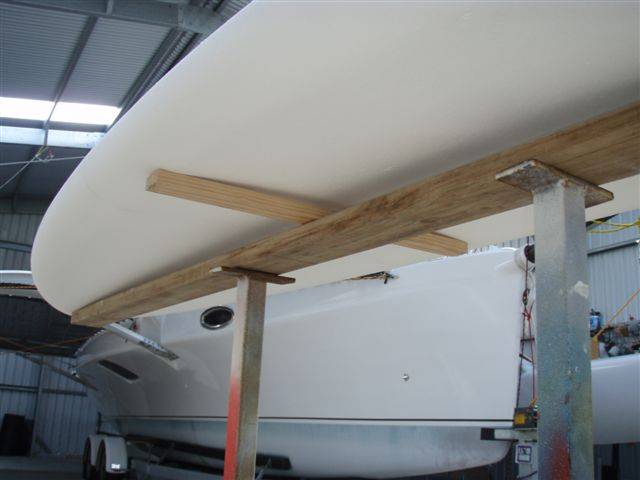

The weight of glass & resin will nomaly make the board slump to the support that is setting the rocker, or a wood screw either end to pull down



Tux
Tux
VIC
3829 posts
Tux Tux
VIC, 3829 posts
18 May 2009 5:15pm
Hi mate have you ever tried to make a blow up of an existing board....I'm thinking of trying to blow my 6'6 up to 9ft or so and making HWS but am just trying to wrap my head around the rocker and nose tail lift variations
boardbumps
boardbumps
NSW
698 posts
NSW, 698 posts
19 May 2009 10:16am
love that workshop, Just go for it.

Rod
DavidJohn
DavidJohn
VIC
17570 posts
VIC, 17570 posts
19 May 2009 10:36am

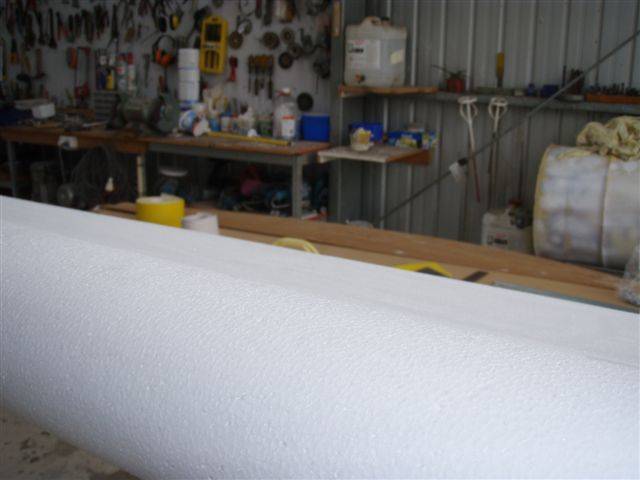

Yeah.. Dean's workshop is a beauty.. ..and here's a better pic..

Hey Dean.. I'd love to see a better pic showing that full deck concave.

DJ

LSD
LSD
VIC
763 posts
LSD LSD
VIC, 763 posts
19 May 2009 12:01pm
Hi DJ,
About 15 mm concave right along the deck.
When Dave Parmentier was here at Roady during the Ripcirl Bells, I had a shot on his board it was very different to what you see around now.
The board I am doing in this shot will have some similarities.
I think we may see more concave decks being made in production boards in the future, it just makes good design sense, less weight, lower c of g, less inclined to slip off a rail, pushes buoyancy into the rails were needed, hence you can go a bit narrower in width.
Cheers
Dean
ps just about low tide.......ya comin for a SUP @ Roady?


log man
log man
VIC
8289 posts
VIC, 8289 posts
19 May 2009 3:50pm
Oh my god!! Dave Parmenter was here on the Surfcoast over the Ripcurl Pro .Then, oh my god!! I have made a complete and utter knob end of myself without even knowing it. I went for a paddle at point Roadknight late one sunday arvo,small , gentle right hander and was joined by a bloke paddleing a little 9 footerish board .We got talking,(the guy had an American accent) mainly about the break and I was giving him the local knowledge about how the tide here is really critical etc etc.I thought ,friendly guy!he seems kind of familiar. anyhow we started talking about boards,I was filling him in on making surfboards at home!!!!,(i was on my latest home made,and it really is as rough as guts) he seemed interested,asking me about my construction techniques , design theories etc.(he must have been cacking his guts up inside) I think at some stage of our conversation(now nightmare)I may have even encouraged him to try and build his own surfboard at his place .The penny still had'nt dropped as I caught my last wave in, then watched this bloke absolutely rip apart his next wave from point to beach.I thought gee that guys not a bad surfer.yep, Dave Parmenter.
Multihull1
Multihull1
QLD
130 posts
QLD, 130 posts
19 May 2009 5:12pm
hi Dean
Beautiful boards mate I just cant stop looking at the REAL PRIZE in the background. A shame you dont live closer, we could get into a lot of trouble together
Robert
DavidJohn
DavidJohn
VIC
17570 posts
VIC, 17570 posts
19 May 2009 5:15pm
log man said...

Oh my god!! Dave Parmenter was here on the Surfcoast over the Ripcurl Pro .Then, oh my god!! I have made a complete and utter knob end of myself without even knowing it. I went for a paddle at point Roadknight late one sunday arvo,small , gentle right hander and was joined by a bloke paddleing a little 9 footerish board .We got talking,(the guy had an American accent) mainly about the break and I was giving him the local knowledge about how the tide here is really critical etc etc.I thought ,friendly guy!he seems kind of familiar. anyhow we started talking about boards,I was filling him in on making surfboards at home!!!!,(i was on my latest home made,and it really is as rough as guts) he seemed interested,asking me about my construction techniques , design theories etc.(he must have been cacking his guts up inside) I think at some stage of our conversation(now nightmare)I may have even encouraged him to try and build his own surfboard at his place .The penny still had'nt dropped as I caught my last wave in, then watched this bloke absolutely rip apart his next wave from point to beach.I thought gee that guys not a bad surfer.yep, Dave Parmenter.



.. Classic stuff ..

I've heard that Dave Parmenter was staying at Wayne Lynch's place so I wonder if we'll start seeing Wayne on a SUP soon.

Thanks for the deck pic Dean (looks great) .. I'll be seeing you again down there soon..

DJ
LSD
LSD
VIC
763 posts
LSD LSD
VIC, 763 posts
19 May 2009 6:32pm
Hey LOG Man...........THATS JUST WHAT I DID THE FIRST TIME HE WAS THERE!
I had no idea!
LOL
LSD
LSD
VIC
763 posts
LSD LSD
VIC, 763 posts
19 May 2009 6:46pm
On the subject of Wayne, Jarrod & I were at Danger last week when Wayne came sailing out of Bass Strait, flew past the reefs & dropped anchor at fishos, not long after I noticed a SUP'er in his cloths, with a large back pack on making his way out to the 50' cat.
Being a nice 15 to 20 knt southerly we thought let's do a down winder & say giday too.
On arrival it was clear what Cusso was carying in the "large" back pack, "liquid refreshment" .......most of it gone.
Cusso was intending to leave the same way he arrived.....on his standup paddle board....but after dark
NewcastleSUP
NewcastleSUP
NSW
250 posts
NSW, 250 posts
19 May 2009 7:28pm
I think we may see more concave decks being made in production boards in the future, it just makes good design sense, less weight, lower c of g, less inclined to slip off a rail, pushes buoyancy into the rails were needed, hence you can go a bit narrower in width.

Dave was riding the new 9'6 Sub Vector whilst in Oz. This along with the 9'3Sub Vec and 10'0 Sub Vec production boards will have the concave decks.
rodriguez
rodriguez
VIC
883 posts
VIC, 883 posts
19 May 2009 8:59pm
what are the specs on the 10' & the 9-6
NewcastleSUP said...

I think we may see more concave decks being made in production boards in the future, it just makes good design sense, less weight, lower c of g, less inclined to slip off a rail, pushes buoyancy into the rails were needed, hence you can go a bit narrower in width.

Dave was riding the new 9'6 Sub Vector whilst in Oz. This along with the 9'3Sub Vec and 10'0 Sub Vec production boards will have the concave decks.


62mac
62mac
WA
24860 posts
WA, 24860 posts
19 May 2009 7:39pm
I want that shed with all the toy's as in DJ's shot [}:)]
62mac
62mac
WA
24860 posts
WA, 24860 posts
19 May 2009 7:43pm
log man said...

Oh my god!! Dave Parmenter was here on the Surfcoast over the Ripcurl Pro .Then, oh my god!! I have made a complete and utter knob end of myself without even knowing it. I went for a paddle at point Roadknight late one sunday arvo,small , gentle right hander and was joined by a bloke paddleing a little 9 footerish board .We got talking,(the guy had an American accent) mainly about the break and I was giving him the local knowledge about how the tide here is really critical etc etc.I thought ,friendly guy!he seems kind of familiar. anyhow we started talking about boards,I was filling him in on making surfboards at home!!!!,(i was on my latest home made,and it really is as rough as guts) he seemed interested,asking me about my construction techniques , design theories etc.(he must have been cacking his guts up inside) I think at some stage of our conversation(now nightmare)I may have even encouraged him to try and build his own surfboard at his place .The penny still had'nt dropped as I caught my last wave in, then watched this bloke absolutely rip apart his next wave from point to beach.I thought gee that guys not a bad surfer.yep, Dave Parmenter.


One word would describe someone like that and it is Humble. mac
