Hey everyone,
see below the Goya wave range designs for 2022/2023. Looking incredible!
CUSTOM 4 in sizes 54l, 60l, 68l, 74l, 79l, 84l, 89l, 94l, 104l 114l
Changes: wider outline, thicker rails in front, thinner rails in back, slot boxes instead of US+MT boxes

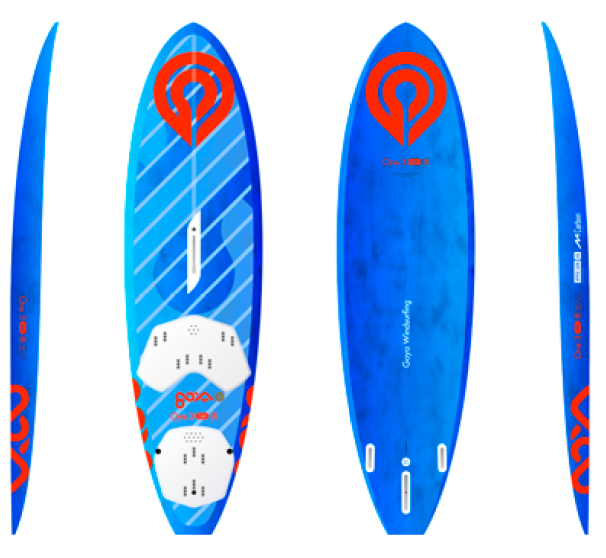

ONE 3 in sizes 77l, 85l, 95l, 105l, 115l
NITRO 3 in sizes 89l, 98l, 106l
CUSTOM 3 in sizes 76l, 82l, 86l, 92l, 99l
Why slotboxes instead of MT, the latter is a better system and lighter, better made and more durable, it seems to me with one bolt instead of two screws. Infact these were the reasons given by Quatro/Goya for preferring them in years past. Simple, set and forget, no second guessing the position. Quatro/Goya have enough movement in rear US box fins to allow for adjustments as required. Seems a retrograde step to go for slotbox on sides in lieu of MT unless I am missing something. Good US box retained for rear fins.
Select to expand quoteRichardG said..
Why slotboxes instead of MT, the latter is a better system and lighter, better made and more durable, it seems to me with one bolt instead of two screws. Infact these were the reasons given by Quatro/Goya for preferring them in years past. Seems a retrograde step unless I am missing something.
My guess is they decided to standardize with the rest of the industry
Select to expand quotephiln said..
Looks good. Any specs available?
Not yet. When I got them I update the pics above.
Select to expand quotephiln said..RichardG said..
Why slotboxes instead of MT, the latter is a better system and lighter, better made and more durable, it seems to me with one bolt instead of two screws. Infact these were the reasons given by Quatro/Goya for preferring them in years past. Seems a retrograde step unless I am missing something.
My guess is they decided to standardize with the rest of the industry
Possibly but MT retained for One 3 FSW model. I wonder if Quatro have same approach. Query Pyramid for 2022 ?
I disagree as their US rears were short and only had about 8mm adjustment.
Anyway top marks for adding a 54L quad!!!!!!!
Same for Quatro. Cube with 4x Slot, Pyramid with 1x US + 2x Slot. Power with 1xPB + 2x MT.
Select to expand quoteHanstholm said..
Same for Quatro. Cube with 4x Slot, Pyramid with 1x US + 2x Slot. Power with 1xPB + 2x MT.
Any pictures of the Quatro boards?
How durable are slot boxes ? Any issues with last years of experience since introduced ? Why is FSW given different treatments ? ie specifically MT ?
Slots were crap from some manufacturers a few years ago - but now we have the decent ones with the screw thru threaded G10 blocks, all the stripping problems have gone. EG the Severne / Flikka ones are just brilliant.
I'm sure some are still placcy crap.... but if Goya and Quatro are using slot now I'd be pretty sure they've gone for the good ones.
Looks like they've been testing slot boxes for a long time. The pictures of the 2020/21 Quatro Pyramid ridden by Levi on their Pyramid page has slot boxes.
Select to expand quoteMark _australia said..
Slots were crap from some manufacturers a few years ago - but now we have the decent ones with the screw thru threaded G10 blocks, all the stripping problems have gone. EG the Severne / Flikka ones are just brilliant.
I'm sure some are still placcy crap.... but if Goya and Quatro are using slot now I'd be pretty sure they've gone for the good ones.
Yes sounds like good advice. Thanks.
Select to expand quoteRichardG said..
Why slotboxes instead of MT
Probably they need to sell some more fins.. lol Slots on Pro rider's boards.. hmm maybe because slots are easier to slap in to test stuff - no need to drill through the deck plus all 4 fins same system..
I love how Starboard was switching from US to slots and back and force.
Sort of like in this image.. Think of clients as board designers ... and us (users) who need to have two sets of fins.. lol
I've seen a leaking Quatro MT and replacement is a hell of a lot easier with a Slot.
I'm betting the installed weights are similar even if the bare boxes aren't.
I think slot box is heavier than MT overall. The thing I don't like about slots is that everytime you put your fins you have to abuse them with those screws... and hitting sand bottom(not to mention pebbles, tiny stones...etc) and off you go- no fins. By far the mini us box is the most reliable and so is MT. But yes on the other hand instillation and replacement is easier with slot. Lets hope that at Goya/Quatro have sorted out these things .
Any info on the 2022 Goya Bolt? I heard that it was going to have some changes(?)
Drew
At least if you loose your board and it's getting dark you won't have a problem finding these!
You can finde the Goya and Quatro specs in this French forum:
u-ride.net/forums/viewtopic.php?p=188562#p188562
Select to expand quoteHanstholm said..
Hey everyone,
see below the Goya wave range designs for 2022/2023. Looking incredible!CUSTOM 4 in sizes 54l, 60l, 68l, 74l, 79l, 84l, 89l, 94l, 104l 114l
Changes: wider outline, thicker rails in front, thinner rails in back, slot boxes instead of US+MT boxes ONE 3 in sizes 77l, 85l, 95l, 105l, 115lNITRO 3 in sizes 89l, 98l, 106lCUSTOM 3 in sizes 76l, 82l, 86l, 92l, 99l
Thank you Urs
Nice boards! Slot vs US from my experience... Hitting a rock with a slot box fin you break the box, with US one hardly even need to replace the fin but just fix it.
Has there been any development in slot boxes lately that prevents breaking the box?
The finsets on the Goya Custom 4 quads appear to be quoted in error. They can't possibly have the same size MFC QS RTM 200 fins for 54 litres up to 114 litres. This error is easily seen when you compare to the Quatro Cube fins:
Select to expand quoteTanel said..
Nice boards! Slot vs US from my experience... Hitting a rock with a slot box fin you break the box, with US one hardly even need to replace the fin but just fix it.
Which slots? the moulded plastic ones yes, weak. God, some of them split from just doing up the screws!!!! The carbon into PVC foam ones - no.
Select to expand quoteGrantmac said..
I've seen a leaking Quatro MT and replacement is a hell of a lot easier with a Slot.
I'm betting the installed weights are similar even if the bare boxes aren't.
Only as the factory doesn't install them properly.
If the "pipe" meets the deck of course it won't bond well as its plastic.
However if a block of PVC say 150mm x 50mm is installed all the way thru to the deck and then the box is installed, any separation of pipe from deck laminate won't matter as the PVC foam does not absorb moisture.
That's why I use SUP shaft for my PB installs (not plastic), and fill the cavity with PU pour foam and so on......
Perhaps that is the reason for the change - easier install of a slot, and less chance of top leakage, plus adjustable
I don't see MT lasting much longer if Goya and Quatro stop it.
Select to expand quotesprayblaze said..
I think slot box is heavier than MT overall. The thing I don't like about slots is that everytime you put your fins you have to abuse them with those screws... and hitting sand bottom(not to mention pebbles, tiny stones...etc) and off you go- no fins. By far the mini us box is the most reliable and so is MT. But yes on the other hand instillation and replacement is easier with slot. Lets hope that at Goya/Quatro have sorted out these things .
I've never understood that arguement - cosmetic damage to fins bases, who cares. If they have the rebated sides the screws engage and they don't pull out easily at all.
As to weight, properly installed MT is a bit heavier than a proper carbon slotbox.
But poorly installed MT (the reality of a factory board as I said above) is heavier than a cheap plastic slotbox. Not much in it.....
I choose slot due to adjustable, ability to use butchered US box fins and light if built properly.
But using MT boxes in my new build as I have a sh!tload of them lol
Select to expand quoteMark _australia said..Grantmac said..
I've seen a leaking Quatro MT and replacement is a hell of a lot easier with a Slot.
I'm betting the installed weights are similar even if the bare boxes aren't.
Only as the factory doesn't install them properly.
If the "pipe" meets the deck of course it won't bond well as its plastic.
However if a block of PVC say 150mm x 50mm is installed all the way thru to the deck and then the box is installed, any separation of pipe from deck laminate won't matter as the PVC foam does not absorb moisture.
That's why I use SUP shaft for my PB installs (not plastic), and fill the cavity with PU pour foam and so on......
Perhaps that is the reason for the change - easier install of a slot, and less chance of top leakage, plus adjustable
I don't see MT lasting much longer if Goya and Quatro stop it.
MFC make everything to order so the existence of MT today will provide ongoing orders for fins assuming the boards still exist and need fins. Also Moz_Customs are using MT. It is also noted that MT remains on the Freewave boards so MT remains in the product line. I personally believe MT is better but I might be wrong. It would be interesting to hear KT and Francisco's views on MT.
Select to expand quoteMark _australia said..sprayblaze said..
I think slot box is heavier than MT overall. The thing I don't like about slots is that everytime you put your fins you have to abuse them with those screws... and hitting sand bottom(not to mention pebbles, tiny stones...etc) and off you go- no fins. By far the mini us box is the most reliable and so is MT. But yes on the other hand instillation and replacement is easier with slot. Lets hope that at Goya/Quatro have sorted out these things .
I've never understood that arguement - cosmetic damage to fins bases, who cares. If they have the rebated sides the screws engage and they don't pull out easily at all.
As to weight, properly installed MT is a bit heavier than a proper carbon slotbox.
But poorly installed MT (the reality of a factory board as I said above) is heavier than a cheap plastic slotbox. Not much in it.....
I choose slot due to adjustable, ability to use butchered US box fins and light if built properly.
But using MT boxes in my new build as I have a sh!tload of them lol
For custom Quatros maybe carbon slot boxes, but for production Goyas I doubt it (this means more weight imho). Btw can MT front fins be installed directly in slot boxes (they have rebated sides) ? Thanks.
So the new Goya boards have gone blazing bright neon colors and the new Quatro boards are now white...?
I thought the red, yellow and blue Quatros were some of the best looking production boards ever.
Drew
Select to expand quotephiln said..Hanstholm said..
Same for Quatro. Cube with 4x Slot, Pyramid with 1x US + 2x Slot. Power with 1xPB + 2x MT.
Any pictures of the Quatro boards?
+1 Quatro 2022/2023 pics anyone???
Select to expand quoteFreakDrew said..
So the new Goya boards have gone blazing bright neon colors and the new Quatro boards are now white...?
I thought the red, yellow and blue Quatros were some of the best looking production boards ever.
Drew
yeah the Quatros were freaking sexy. I hpoe they keep the styleand just change the colours e.g. darker green for the cube and purple for the power...or sth like that
