Whitworths sells parts, they will have to order it in, be prepared to pay a fortune for a simple part

The unit I have is probably an 80's model.

Raymarine in Belrose have parts for the later models which they think will probably fit, but cost nearly as much as a new one.

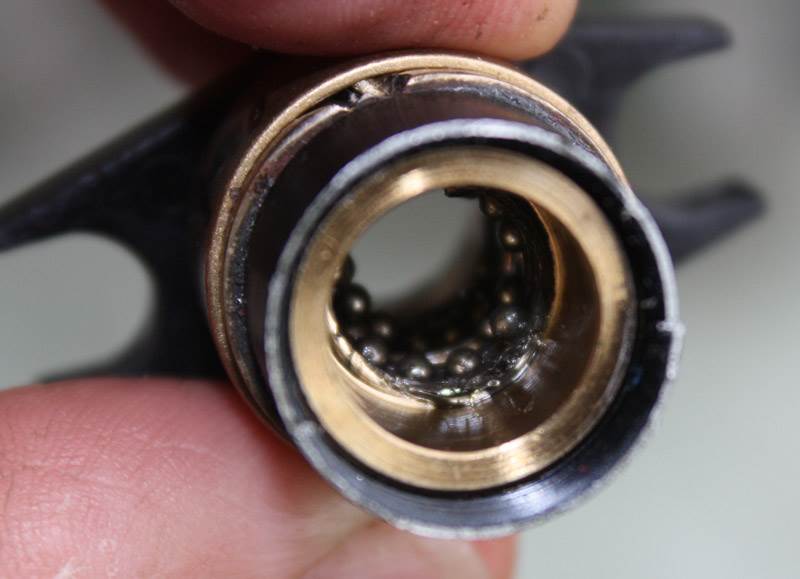

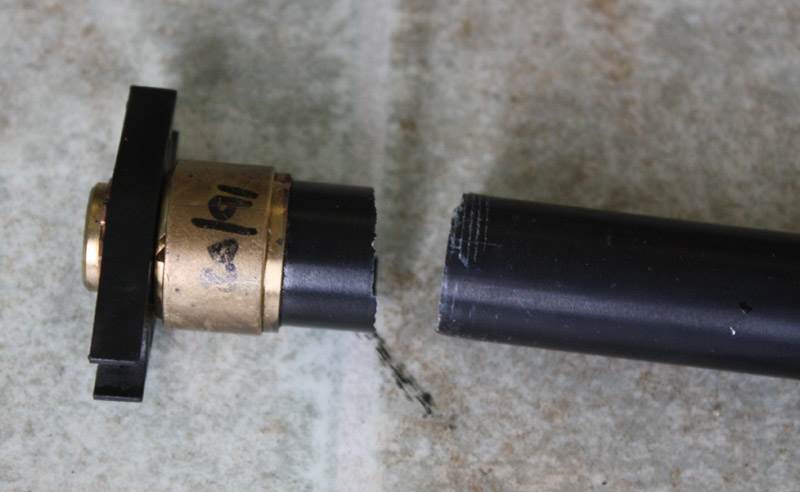

It looks like the push rod/tube is screwed on to the bushing then crimped.



Could be tricky getting it back on to the drive screw with all the ball bearings.


The unit was in very good condition and internally, belts etc. looks good.

I haven't been able to talk to anyone at Aquatronics yet, but in the meantime if anyone has an old unit they wish to sell for parts, let me know

No manual in the box?

The female socket is pretty standard fair and should be very easily found.

Mine is newer and the manual has instructions on how to wire for power alone or with the remote. On mine I just want power only so it's just 2 pins + is pin1 and - is pin2, voila you're up and running. Don't forget a 10A fuse and heavy wiring.

I guess you've already been here. It's the manual and will explain how the remote goes through Seatalk or directly to the 6 pin plug.
www.raymarine.com/view/index-id=346.html

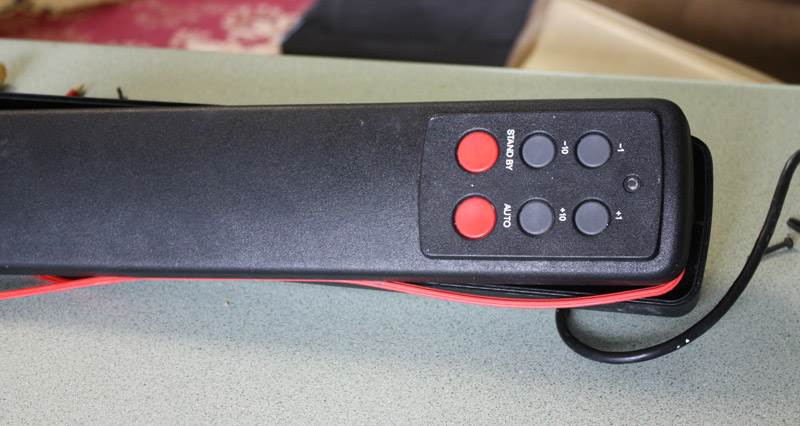

Remote has 3 wires.

Red+ pin1, sheath - pin2, yellow seatalk pin3.

Find 6 pin female socket and cut the remote.

Googling shows a few posts.
