Securing Jacklines

9 years ago
Reply
Register to post, see what you've read, and subscribe to topics.
keensailor
keensailor
NSW
702 posts
NSW, 702 posts
6 Sep 2016 8:55am

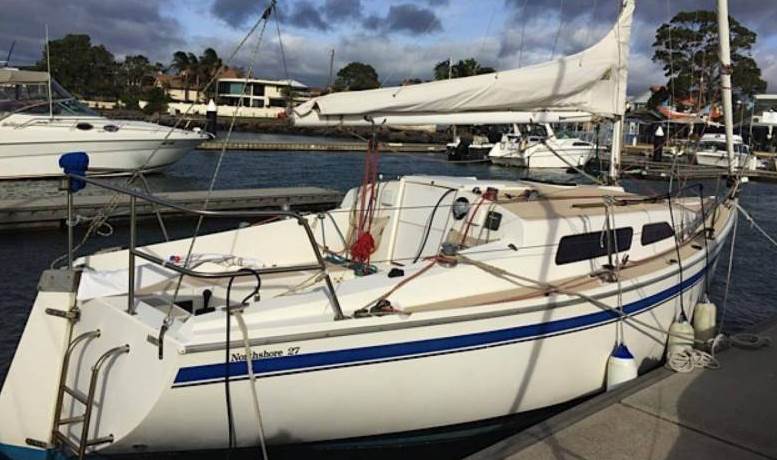

We need to install some Jacklines for a passage we are doing down to Jervis Bay. Boat is a Northshore 27 (see pics below).

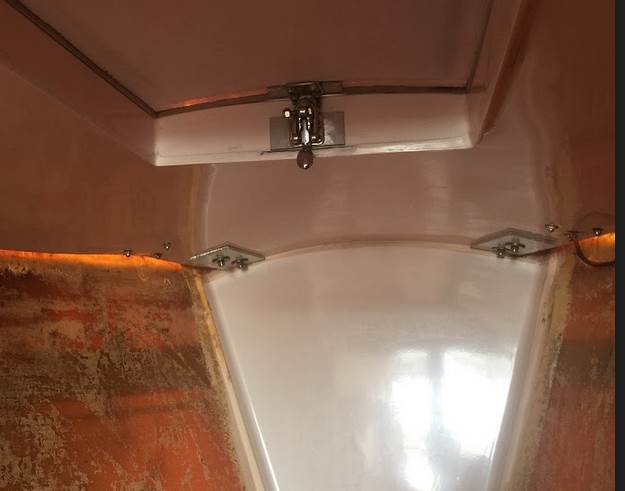

The front and rear horn cleats have decent backing plates as seen below. I was thinking of fixing the webbing jackline with some type of snap hook to the bow and stern horn cleats. Where would I get webbing the right length? what is the best combination of hook, shackles etc to secure to a horn cleat.
cheers













EC31
EC31
NSW
490 posts
NSW, 490 posts
6 Sep 2016 9:11am

While webbing would be the preference, I have found that 2 lengths of non-stretch rope will do the job for coastal cruising. At the bow, I tie mine off to the anchor cleat from each side as we use the horn for our largest sails, but others may offer a better alternative.
rumblefish
rumblefish
TAS
824 posts
TAS, 824 posts
6 Sep 2016 10:58am
i prefer webbing as it doesn't roll when you step on it.

Go see you local sail maker, get them made about a foot shorter than the length from cleat to cleat with a loop either end.

Cow hitch through the front cleats then tension as required with a lashing of 4-6mm spectra at the rear cleats.
MorningBird
MorningBird
NSW
2711 posts
NSW, 2711 posts
6 Sep 2016 11:47am
rumblefish said..
i prefer webbing as it doesn't roll when you step on it.

Go see you local sail maker, get them made about a foot shorter than the length from cleat to cleat with a loop either end.

Cow hitch through the front cleats then tension as required with a lashing of 4-6mm spectra at the rear cleats.


+1
Whitworths will have them made for you.
PhilY
PhilY
NSW
158 posts
NSW, 158 posts
6 Sep 2016 1:04pm
Make sure that you have a good pad eye at the front of the cockpit to clip on/off to as you enter/exit the cabin. Most offshore sailors these days have two tethers on their harness, one short and one long so that you are clipped on at all times on deck.
keensailor
keensailor
NSW
702 posts
NSW, 702 posts
6 Sep 2016 1:13pm
some good advice, cheers
twodogs1969
twodogs1969
NSW
1000 posts
NSW, 1000 posts
6 Sep 2016 4:33pm
For the occasional use that I need them I have a couple of ropes 8mm I run from the bow bollard through the inside of the stays and tie off about 2m from the stern. I know people say about rolling on the rope but there are other ropes on the deck anyway . A lot cheaper.
shaggybaxter
shaggybaxter
QLD
2679 posts
QLD, 2679 posts
6 Sep 2016 5:16pm
+1. Lashings enable tensioning and are easily replaced.
In the purist sense, the jack lines should be inboard as far as you can place them, the idea being to mitigate your ability to go over the side. The rearward end should terminate on your cabin top to pad eyes. Well worth doing if you are needing them a lot.
When you're in the cockpit , you're clipped on to a hard point .
FreeRadical
FreeRadical
WA
855 posts
WA, 855 posts
6 Sep 2016 3:54pm
And always have a knife or two on you. I carry a leatherman style, and a gill tool with webbing cutter.
